Building Pole Barns & Quality Buildings in Kansas for Over 20 Years
29 Gauge Roof, Sides and Trim
10' O/C Roof Trusses
10' O/C Sidewall Laminated Posts
2' O/C 2x4 Roof Purlins
2' O/C 2x4 Side Girts
2x6 Treated Skirt Board
60 Year Column Warranty
40 Year Steel Warranty
1 Year Workmanship Warranty
Steel Meets Class 4 Impact Rating
19 Colors to Chose From
201 S Main
El Dorado, KS
Contact us Today
For a Free Estimate
**Concrete Work and
Site Prep Available**
Overhangs (please list)
Door sizes (overhead and entry)
# of windows and sizes
Now offering steel trusses for wider spans!
Will build pole buildings within 80 miles of El Dorado, KS
Your Five-Star Builder
"We don't use building kits! Every building we construct is a custom building."
Please provide your Name, City, Phone Number (will only be used if we have a question while bidding) and email address.

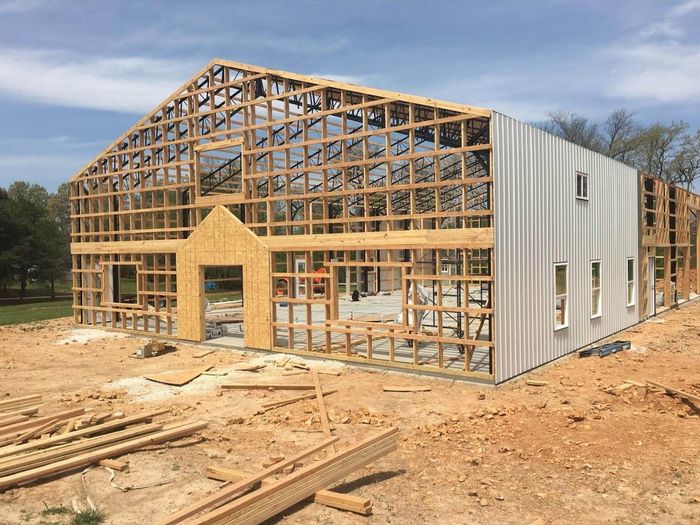

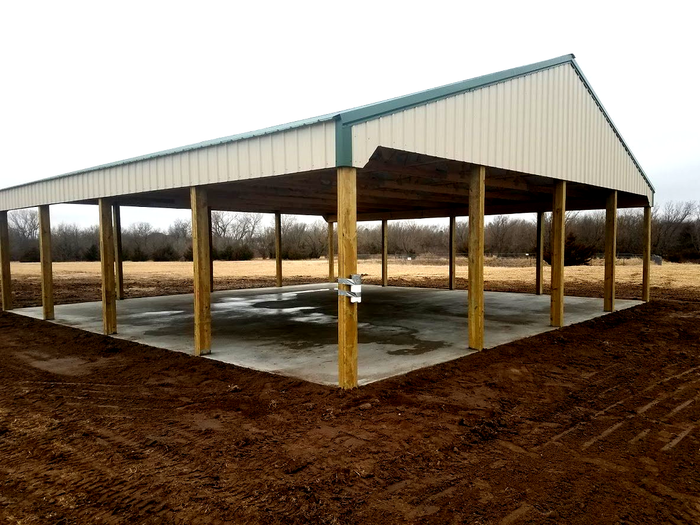

Wood framed:Trusses and posts are constructed with treated lumber.

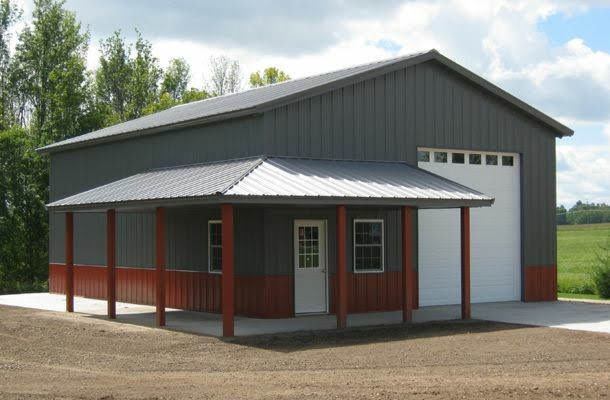

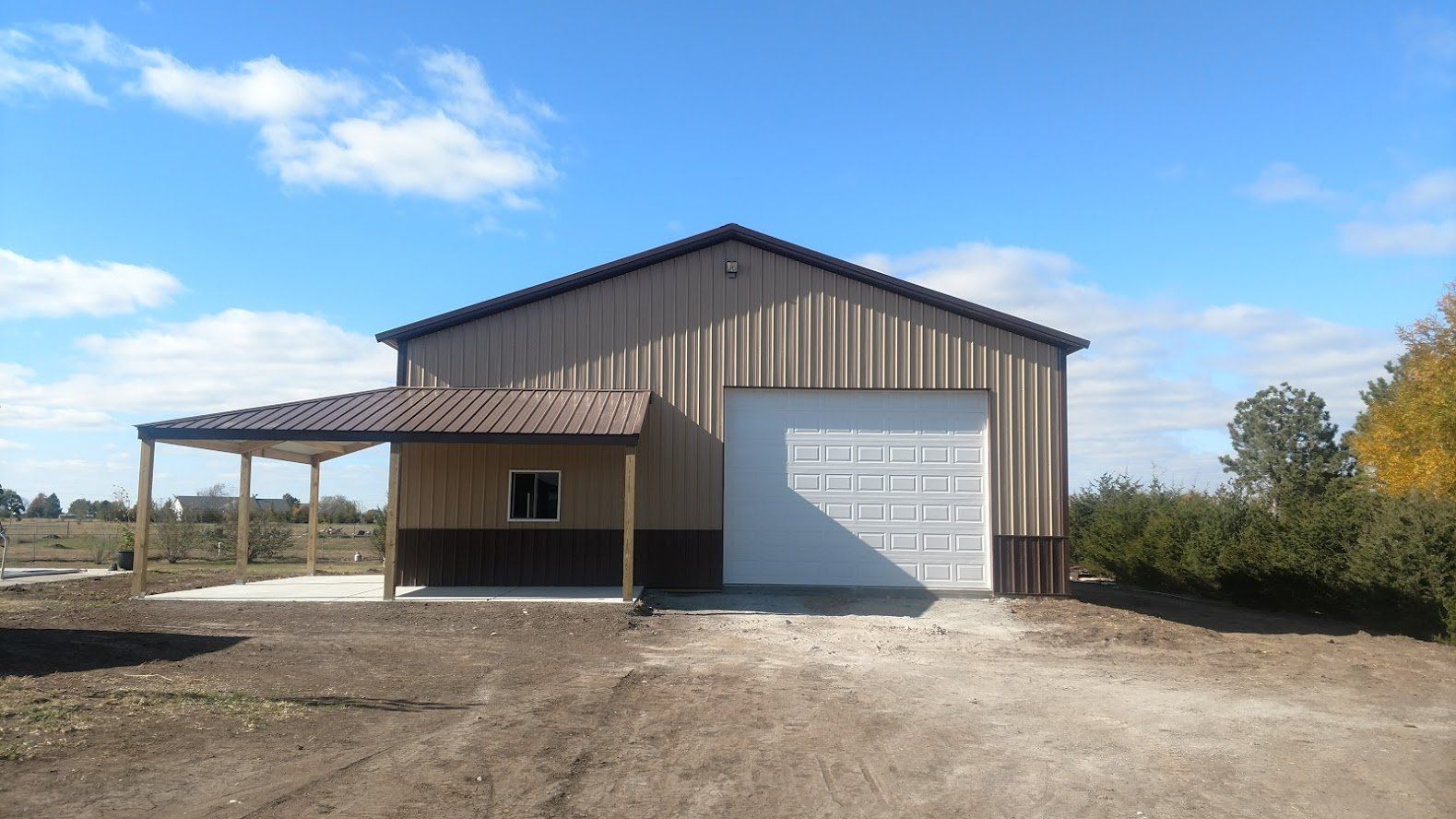

Hybrid steel framed: Trusses and posts are steel constructed.
Overhangs: Typically 12" or 24"
Door sizes: Overhead doors, Sliding doors, Entry doors (typically 3') Also insulated or non-insulated.
Windows: Sizes and number of windows, any special requirements you would like. Ex. White, Tan, Casement, Single hung, Sliders...
Wainscoat: Typically goes up 3' with one color on the exterior metal panels, then will continue with another color the remainder up the wall. Ex. See pic on this page
*Astro-foil insulation gives a R-7 insulation value. This helps control condensation, has a Class A fire rating and reflects radiant heat.
* 2" vinyl backed insulation is also available. It has a R-11 insulation value. This will cost a little more but will reduce energy cost, help control condensation and improve noise control.
Concrete: Typically we pour a 4" thick concrete slab for the building pad, however if there will be heavy equipment going on it, it is preferred to use 5-6" thick slab.
Metal Panels: 29 gauge and 26 gauge are available. 26 gauge will be a thicker steel (approx. 25% thicker) this is usually used for residential buildings or high end Ag buildings. 29 gauge generally is all that is needed for a typical Ag building and will reduce your cost more than if the 26 gauge is used.
We also offer steel trusses and complete steel building packages.
